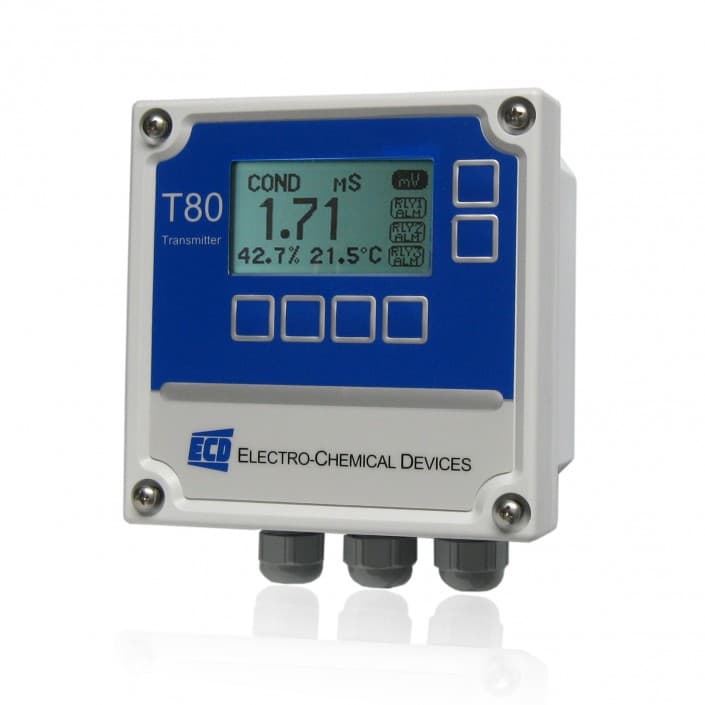

Conductivity / Resistivity Analyser
This analyser has been designed for the online measurement of Conductivity or Resistivity and analyse the quality of industrial water being used in a process plant.
Our Conductivity and Resistivity sensors cover the full measurement range from High Purity water to Concentrated Brine Solution. Toroidal Conductivity (Inductive Conductivity) sensors are perfectly suited for high conductivity solutions like concentration measurement in percentage or any application that corrodes or covers the conventional contacting conductivity sensors.
We also offer conductivity sensor for high pressure (27.5 Bar), high temperature (0 - 200 °C) conductivity measurement. It is an ideal choice for boiler control applications, blowdown control, condensate monitoring, leak detection on heat exchangers and steam purity measurement.
- Single channel or dual channel measurement.
- Easy-to-use menu structure.
- Built-in signal conditioning electronics for noise-free signal transmission.
- Choice of sensor body materials for compatibility with process liquid.
- Option of various process fittings with adjustable insertion lengths.
- Application specific sensor cartridges.
- Easily replaceable sensor cartridges.
- Large easily viewed LCD display.
| Specification | Details |
|---|---|
| Low Conductivity Measurement Range | 1 µS through 20 µS |
| High Conductivity Measurement Range | 50 µS through 20 mS |
| Toroidal Conductivity Measurement Range | 50 mS through 1000 mS |
| Resistivity Measurement Range | 2 MΩ through 50 MΩ |
| Accuracy | 2% of calibrated range |
| Power Supply Options | 100 - 240 Vac / 24 Vdc / Loop Powered |
| Analog Output and Digital Communication | Isolated 4-20 mA output and MODBUS® RTU (standard) and HART® (Optional) |
| Contact Relays (Optional) | 3 x SPDT relays, can be configured as Alarm (set point) relays, timer activated relays or fault relays. |
| Transmitter Housing | Polycarbonate |
| Ingress Protection | NEMA 4X (IP66), Weatherproof |
| Display | 128 x 64 pixels (70 x 38 mm) backlit LCD |
| Transmitter Housing (Dimensions) | 144 mm (H) x 144 mm (W) x 90 mm (D) |
| Transmitter Weight | 750 gm. |
| Sensor Installation | Insertion, flow-through and valve-retractable |
| Sensor Housing Material Options | SS316 (Standard), Titanium, Hastelloy C22 (Optional) |
| Sensor Dimensions | CS10 & RS10 : 190 mm (Dia) and 349 mm (L), CS17 & RS17 : 190 mm (Dia) and 483 mm (L) |
| Sensor Process Connection | CS10 & RS10: 3/4" Gland Fitting and CS17 & RS17: 1" valve-retraction assembly |
| Sensor Cable Length | 10 feet (Standard), upto 50 feet in the increment of 10 feet (Optional) |
| Sensor Weight | 1.13 kg to 2.63 kg (depending upon the sensor) |
- Thermal Power
- Oil and Gas
- Petrochemical
- Food and Beverages
- Pharmaceuticals
- Pulp and Paper
- Sugar
- Semiconductor
