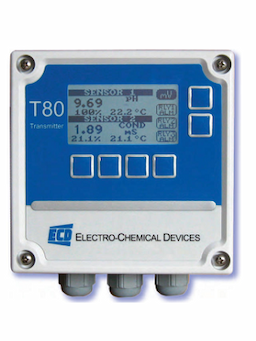

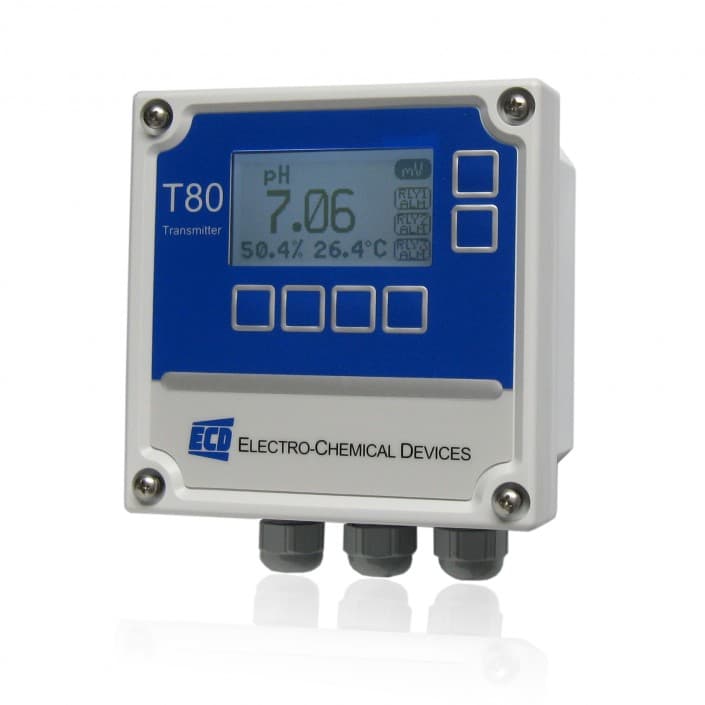

pH / ORP Analyser
This analyser has been designed for the online measurement of pH or ORP (Redox) and analyse the quality of water used in a process plant or water treat plant (WTP) or waste water treatment plant (STP/ETP).
- Single channel or dual channel measurement
- Easy-to-use menu structure
- Digital communication using noise-free sensor
- Dual channel offers interactive channels, pH compensated readings and interfering ion adjustment
- Large easily viewed LCD display
- Intelligent sensor that stores calibration data and offer digital connectivity
- Easily replaceable electrode cartridges
- Application specific electrode cartridges
- Choice of various sensor housing materials to suit process application
- Detachable sensor cable with a rugged IP68 industrial connector simplifying the installation of pre-calibrated sensors (Optional)
| Specification | Details |
|---|---|
| Measurement Range | (-) 1 to 15 pH / (-) 1500 to (+) 1500 mV |
| Accuracy | 0.02 pH / (±) 1 mV |
| Power Supply Options | 100 - 240 Vac / 24 Vdc / Loop Powered |
| Analog Output and Digital Communication | Isolated 4-20 mA output and MODBUS® RTU (standard) and HART® (Optional) |
| Contact Relays (Optional) | 3 x SPDT relays, can be configured as Alarm (set point) relays, timer activated relays or fault relays. |
| Transmitter Housing | Polycarbonate |
| Ingress Protection | NEMA 4X (IP66), Weatherproof |
| Display | 128 x 64 pixels (70 x 38 mm) backlit LCD |
| Transmitter Housing (Dimensions) | 144 mm (H) x 144 mm (W) x 90 mm (D) |
| Transmitter Weight | 750 gm. |
| Sensor Installation | Insertion, Immersion, flow-through and valve-retractable |
| Sensor Housing Material Options | SS316 (Standard), Titanium, Hastelloy C, PVDF (Optional) |
| Sensor Dimensions | ¾” OD x 10” Length |
| Sensor Process Connection | ¾” NPT(M) |
| Sensor Cable Length | 10 feet (Standard), 20 - 100 feet (Optional) |
| Sensor Weight | 1200 gm. |
- Thermal Power
- Oil and Gas
- Petro-Chemical
- Drinking Water
- Industrial Waste Water
- Food and Beverage
- Pharmaceuticals
- Pulp and Paper
- Sugar
- Metals and Mining
- Semiconductor and Electronics
